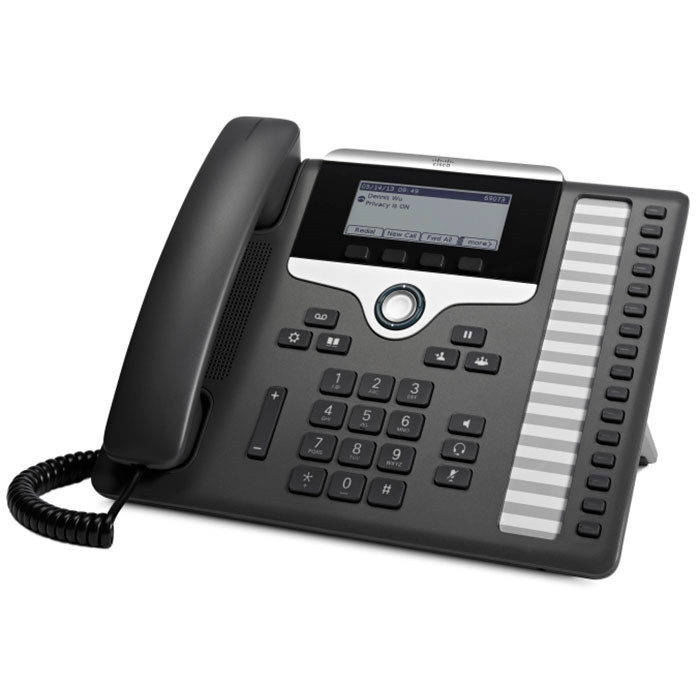

CP-7861-K9, Cisco IP Phone 7861, 16 Lines, 3.5" Display
Model No.: CP-7861-K9
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * CP-7861-K9: Cisco IP Phone 7861
The Cisco CP-7861-K9 is a professional unified IP phone designed for business-grade voice communications. With support for Session Initiation Protocol (SIP) and wideband codecs like G.722, it delivers clear audio for busy enterprise and SMB environments across Asia, Europe, Africa, and North America. The 3.5" backlit display and 16-line capacity simplify call handling for receptionists, call center agents, and knowledge workers. Integrated 10/100 or 10/100/1000 Ethernet options, QoS (802.1Q/p) and IEEE 802.3af PoE enable efficient deployment by distributors and integrators.
Specification
| Cisco CP-7861-K9 Specification | |
| Model | CP-7861-K9 |
| Brand | Cisco |
| Signaling protocol support | Session Initiation Protocol (SIP) |
| Codec support | G.711a/μ, G.722, G.729a, iLBC |
| Language support | ● Arabic (Arabic Area)● Bulgarian (Bulgaria)● Catalan (Spain)● Chinese (China)● Croatian (Croatia)● Czech (Czech Republic)● Danish (Denmark)● Dutch (Netherlands)● English (United Kingdom)● Estonian (Estonia)● French (France)● Finnish (Finland)● German (Germany)● Greek (Greece)● Hebrew (Israel)● Hungarian (Hungary)● Italian (Italy)● Japanese (Japan)● Latvian (Latvia)● Lithuanian (Lithuania)● Korean (Korea Republic)● Norwegian (Norway)● Polish (Poland)● Portuguese (Portugal)● Portuguese (Brazil)● Romanian (Romania)● Russian (Russian Federation)● Spanish (Columbia)● Spanish (Spain)● Slovak (Slovakia)● Swedish (Sweden)● Serbian (Republic of Serbia)● Serbian (Republic of Montenegro)● Slovenian (Slovenia)● Thai (Thailand)● Turkish (Turkey) |
| Multiple ring tones | The phone supports user-adjustable ring tones. |
| Directories | The phone identifies incoming messages and categorizes them for users on the screen. This makes it fast and easy to return calls using direct dial-back capability. The corporate directory integrates with the Lightweight Directory Access Protocol (LDAP) standard directory. |
| Quality-of-service (QoS) options |
The phone supports CDP and 802.1Q/p standards, and can be configured with an 801.1Q VLAN header containing the VLAN ID overrides configured by the Admin VLAN ID. |
| Security | ● Certificates ● Image authentication ● Device authentication ● File authentication ● Signaling authentication ● Media encryption using Secure Real-Time Transfer Protocol (SRTP) using AES-128 ● Signaling encryption using Transport Layer Security (TLS) Protocol using AES-128 or AES-256 ● Encrypted configuration files ● 802.1X authentication ● Cryptography |
| Configuration options | The user can configure IP address assignment statically or through the DHCP client. |
| Physical dimensions (H×W×D) | IP Phone 7861: 207 x 265 x 28mm (exclude foot stand) |
| Weight | IP Phone 7861: 1053g |
| Display | 3.5” 396×162 pixels |
| Ethernet switch | The phone has a 10/100BASE-T (The Cisco IP Phone 7811, 7821 & 7861) or a10/100/1000BASE-T (The Cisco IP Phone 7841) Ethernet connection through two RJ-45 ports, one for the LAN connection and the other for a downstream Ethernet device connection like a PC. |
| Phone casing composition | Polycarbonate acrylonitrile butadiene styrene (ABS) textured plastic. |
| Power requirements | The phone is an interoperable IEEE 802.3af PoE (Class 1 device); 48 VDC is required; it can be supplied locally at the desktop using an optional AC-to-DC power supply (CP-PWR-CUBE-3=). Use of the power supply also requires the use of one of the corresponding AC country cords. |
| Operational temperature | 32 to 104°F (0 to 40°C) |
| Nonoperational temperature shock | 14 to 140°F (-10 to 60°C) |
| Humidity | Operating 10% to 90%, non-condensing Non-operating 10% to 95%, non-condensing |
| Cosmetic | Cisco cosmetic class A |
Related Products
| Cisco IP Phone 7800 Series | |
| CP-7811-K9 | Cisco IP Phone 7811 |
| CP-7821-K9 | Cisco IP Phone 7821 |
| CP-7841-K9 | Cisco IP Phone 7841 |
| CP-7861-K9 | Cisco IP Phone 7861 |
| CP-7821-W-K9 | Cisco IP Phone 7821, White |
| CP-7841-W-K9 | Cisco IP Phone 7841, White |
| CP-7861-W-K9 | Cisco IP Phone 7861, White |
