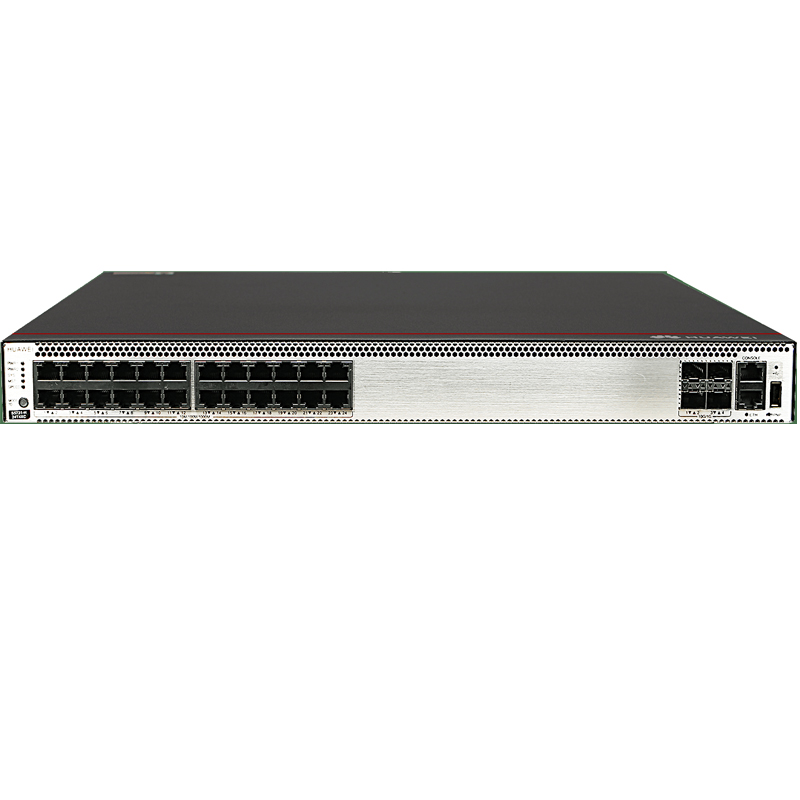

S5731-H24T4XC, Huawei S5731 Switch, 24x10/100/1000BASE-T Ports, 4x10GE SFP+Ports, No Power Module
Model No.: S5731-H24T4XC
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * S5731-H24T4XC: Huawei CloudEngine S5731-H24T4XC (24 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports, one extended slot, without power module)
Specification
| Huawei S5731-H24T4XC Specification | |
| Model | S5731-H24T4XC |
| Fixed port | 24 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 420mm |
| Chassis height | 1 U |
| Chassis weight (including packaging) | 8.4 kg |
| Extended slot | One extended slot, support 2 x 40GE, 8 x 10GE Base-T, 2 x 25GE SFP28 or 8 x 10GE SFP+ cards |
| Power supply type | • 600 W AC (pluggable) • 150 W AC (pluggable) • 1000 W DC (pluggable) |
| Rated voltage range | • AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz • AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz • DC input (1000 W DC): -48 VDC to -60 V DC |
| Maximum voltage range | • AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz • AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) • DC input (1000 W DC): -38.4 V DC to -72V DC |
| Maximum power consumption | 114 W |
| Noise | • Under normal temperature (sound power): 57.5dB (A) • Under high temperature (sound power): 70.9dB (A) • Under normal temperature (sound pressure): 47.5dB (A) |
| Operating temperature | • 0-1800 m altitude: -5°C to 45°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Storage temperature | -40°C to +70°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Surge protection specification (service port) | Common mode: ±6 kV |
| Surge protection specification (power port) | • AC power port: ±6 kV in differential mode, ±6 kV in common mode • DC power port: ±2 kV in differential mode, ±4 kV in common mode |
| Heat dissipation | Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans |
Related Products
| Huawei CloudEngine S5731-H Series Switches | |
| S5731-H24T4XC | S5731-H48T4XC |
| S5731-H24P4XC | S5731-H48P4XC |
| Huawei CloudEngine S5731-S Series Switches | |
| S5731-S24T4X | S5731-S48T4X |
| S5731-S24T4X-A | S5731-S48T4X-A |
| S5731-S24T4X-D | S5731-S48P4X |
| S5731-S24P4X | S5731-S48S4X |
| S5731-S32ST4X | S5731-S48S4X-A |
| S5731-S32ST4X-A | S5731-S32ST4X-D |
