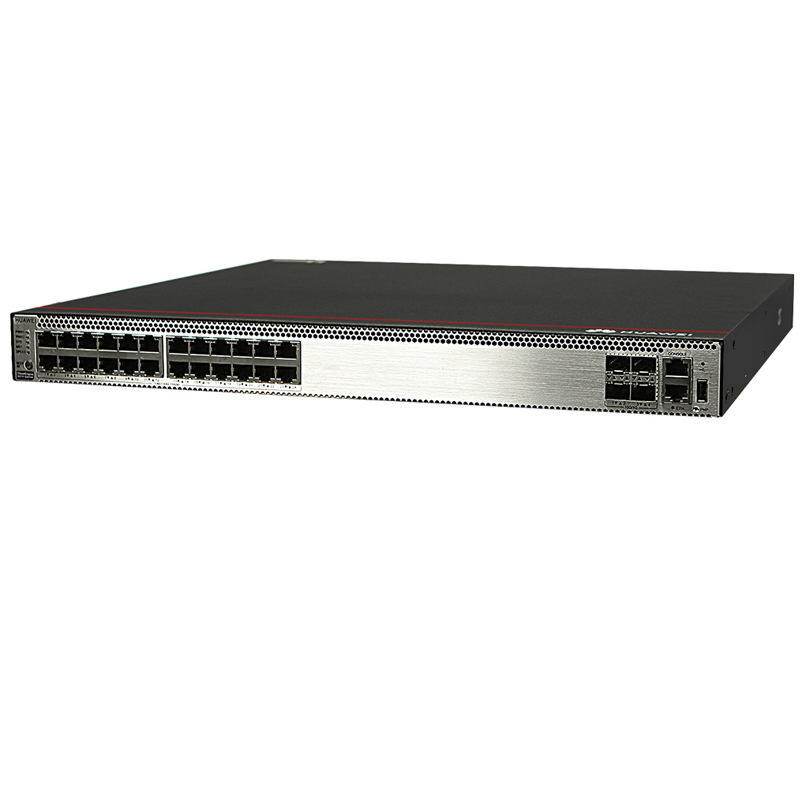

S5731-S24T4X, Huawei CloudEngine S5731-S Series Switch, 24xGE RJ45, 4x10GE SFP+, No Power Module

Key Attributes:

Model No.: S5731-S24T4X
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable

Product Details

* 100% Original New * S5731-S24T4X: Huawei CloudEngine S5731-S24T4X (24 x 10/100/1000BASE-T ports, 4 x 10GE SFP+ ports, without power module)

The CloudEngine S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.

Specification

Huawei S5731-S24T4X Specification
Model	S5731-S24T4X
Fixed port	24 x 10/100/1000Base-T ports, 4 x 10GE SFP+ ports
Dimensions (W x D x H)	442 mm x 420 mm x 43.6 mm
Chassis height	1 U
Chassis weight (including packaging)	8.4 kg
Power supply type	• 150 W AC (pluggable) • 600 W AC (pluggable) • 1000 W DC (pluggable)
Rated voltage range	• AC input (150 W AC ): 100 V AC to 240 V AC, 50/60 Hz • AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz • DC input (1000 W DC): -48 VDC to -60 V DC
Maximum voltage range	• AC input (150 W AC ): 90 V AC to 264 V AC, 47 Hz to 63 Hz • AC input (600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) • DC input (1000 W DC): -38.4 V DC to -72V DC
Maximum power consumption	114 W
Noise	• Under normal temperature (sound power): 57.5dB (A) • Under high temperature (sound power): 70.9dB (A) • Under normal temperature (sound pressure): 47.5dB (A)
Operating temperature	• 0-1800 m altitude: -5°C to +45°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.
Storage temperature	-40℃ to +70℃
Relative humidity	5% to 95% (non-condensing)
Surge protection specification (service port)	Common mode: ±6 kV
Surge protection specification (power port)	• AC power port: ±6 kV in differential mode, ±6 kV in common mode • DC power port: ±2 kV in differential mode, ±4 kV in common mode
Heat dissipation	Air cooling heat dissipation, intelligent speed adjustment, and pluggable fans

Related Products

Huawei CloudEngine S5731-H Series Switches
S5731-H24T4XC	S5731-H48T4XC
S5731-H24P4XC	S5731-H48P4XC

Huawei CloudEngine S5731-S Series Switches
S5731-S24T4X	S5731-S48T4X
S5731-S24T4X-A	S5731-S48T4X-A
S5731-S24T4X-D	S5731-S48P4X
S5731-S24P4X	S5731-S48S4X
S5731-S32ST4X	S5731-S48S4X-A
S5731-S32ST4X-A	S5731-S32ST4X-D
