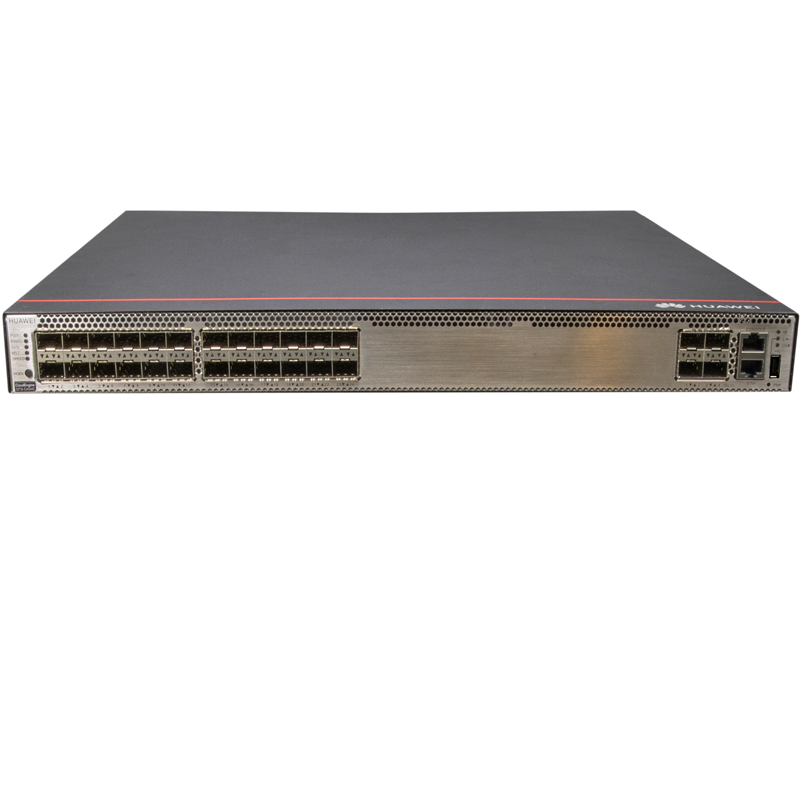

S5736-S24S4XC, Huawei S5736-S Switch, 24xGE SFP, 4x10 GE SFP+, No Power Module
Model No.: S5736-S24S4XC
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * S5736-S24S4XC: Huawei CloudEngine S5736-S24S4XC (24 x GE SFP ports, 4 x 10 GE SFP+ ports, 1*expansion slot, without power module)
Specification
| Huawei S5736-S24S4XC Specification | |
| Model | S5736-S24S4XC |
| Fixed port | 24 x GE SFP ports, 4 x 10 GE SFP+ ports |
| Extended slot | One extended slot, support 4 x 40GE QSFP+, 2 x 40GE QSFP+ and 8 x 10GE SFP+ cards |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 420 mm |
| Chassis height | 1 U |
| Chassis weight (including packaging) | 8.2kg |
| Power supply type | 150 W AC 600 W AC 180 W DC 1000 W DC |
| Rated voltage range | - AC input (150/600 W AC ): 100 V AC to 240 V AC, 50/60 Hz - DC input (180/1000 W DC): -48 VDC to -60 V DC |
| Maximum voltage range | - AC input (150/600 W AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz - High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high voltage DC certification) - DC input (180/1000 W DC): -38.4 V DC to -72V DC |
| Maximum power consumption | 74W |
| Noise | - Under normal temperature (sound power): 49.9dB (A) - Under high temperature (sound power): 73.9dB (A) - Under normal temperature (sound pressure): 37.8dB (A) |
| Long-term operating temperature | - 0-1800 m altitude: -5°C to +45°C - 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Short-term operating temperature | -5℃ ～50℃ |
| Storage temperature | -40°C to +70°C |
| Relative humidity | 5% to 95% (non-condensing) |
| Surge protection specification (power port) |
- AC power port: ±6 kV in differential mode, ±6 kV in common mode - DC power port: ±2 kV in differential mode, ±4 kV in common mode |
| Heat dissipation | Air-cooled heat dissipation and intelligent speed adjustment |
Related Products
| Huawei CloudEngine S5736-S Series All-Optical Switches | |
| S5736-S24S4XC | CloudEngine S5736-S24S4XC (24 x GE SFP ports, 4 x 10 GE SFP+ ports, 1*expansion slot, without power module) |
| S5736-S48S4XC | CloudEngine S5736-S48S4XC (48 x GE SFP ports, 4 x 10 GE SFP+ port, 1*expansion slot, without power module) |
| S5736-S48S4X-A | CloudEngine S5736-S48S4X-A base (48*GE SFP ports, optional RTU upgrade to 10G, 4*10GE SFP+ ports, AC power supply, front access) |
| S5736-S48S4X-D | CloudEngine S5736-S48S4X-D base (48*GE SFP ports, optional RTU upgrade to 10G, 4*10GE SFP+ ports, DC power supply, front access) |
| PAC150S12-R | 150 W AC power module |
| PDC180S12-CR | 180 W DC power module |
| PAC600S12-CB | 600 W AC power module |
| PAC600S12-DB | 600 W AC power module |
| PAC600S12-EB | 600 W AC power module |
| PDC1000S12-DB | 1000 W DC power module |
| Huawei CloudEngine S5736-S Series Multi-GE Switches | |
| S5736-S24UM4XC | S5736-S24UM4XC Base (24*100M/1G Ethernet ports,Optional RTU upgrade to 2.5/5/10G, 4*10GE SFP+ ports, 1*expansion slot, PoE++,without power module) |
| S5736-S24UM4XC | S5736-S24UM4XC 2.5&10G Bundle (12*100M/1G/2.5G Ethernet ports, 12*100M/1G/2.5G/5G/10G Ethernet ports, Optional RTU upgrade to 5/10G, 4*10GE SFP+ ports, 1*expansion slot, PoE++, 1*1000W AC power) |
| S5736-S24UM4XC | S5736-S24UM4XC 10G Bundle (24*100M/1G/2.5G/5G/10G Ethernet ports, 4*10GE SFP+ ports, 1*expansion slot, PoE++, 1*1000W AC power) |
| * Note: All ports support GE by default. You can purchase right-to-use (RTU) licenses to upgrade the port rate (every 12 ports per RTU license) from GE to 2.5GE, 5GE, or 10GE. | |
