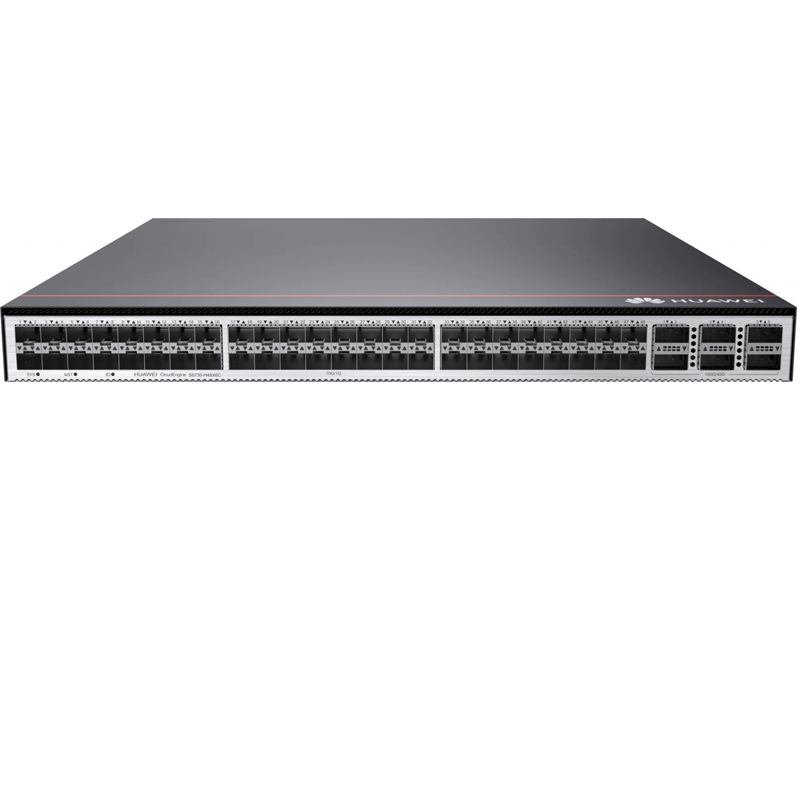

S6730-H48X6C, Huawei S6730 Switch, 48x10GE SFP+, 6x40GE QSFP28, No PS
Model No.: S6730-H48X6C
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * S6730-H48X6C: Huawei CloudEngine S6730-H48X6C (48*10GE SFP+ ports, 6*40GE QSFP28 ports, optional license for upgrade to 6*100GE QSFP28, without power module)
Huawei CloudEngine S6730-H series switches are next-generation enterprise-class core and aggregation switches that offer high performance, high reliability, cloud management, and intelligent operations and maintenance (O&M). They build on an industry-leading Versatile Routing Platform (VRP) and are purpose-built with security, IoT, and cloud in mind. With these traits, CloudEngine S6730-H can be widely used in enterprise campuses, colleges/universities, data centers, and other scenarios.
CloudEngine S6730-H switches offer 10GE, 25GE, 40GE, and 100GE port types, flexibly adapting to diversified network bandwidth requirements. They also support cloud management and implement cloud-managed network services throughout the full lifecycle from planning, deployment, monitoring, experience visibility, and fault rectification, all the way to network optimization, greatly simplifying network management.
Specification
| Huawei S6730-H48X6C Specification | |
| Model | S6730-H48X6C |
| Fixed ports | 48 x 10 Gig SFP+, 6 x 40/100 Gig QSFP28 |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Chassis height(U) | 1U |
| Input voltage | AC Power - Rated AC voltage: 100V to 240V AC; 50/60 Hz - Max. AC voltage: 90V to 290V AC; 45–65 Hz DC Power - Rated DC voltage: –48V～–60V - Max. DC voltage：-38.4V DC～-72V DC |
| Input current | AC 600W：Max 8A DC 1000W：Max 30A |
| Maximum power consumption | 274W |
| Minimum power consumption | 97W |
| Operating temperature | • 0–1800 m altitude: -5°C to 45°C • 1800–5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m. |
| Storage temperature | -40-70℃ |
| Operating altitude | 5000 m |
| Noise (sound pressure at normal temperature) | 65dB(A) |
| Surge protection specification | AC power interface: differential mode: ±6kV: common mode: ±6kV DC power interface: differential mode: ±2kV: common mode: ±4kV |
| Power supply type | 600W AC Power 1000W DC Power |
| Relative humidity | 5% to 95% (non-condensing) |
| Fans | 4, Fan modules are pluggable |
| Heat dissipation | Heat dissipation with fan, intelligent fan speed adjustment |
| MAC | Up to 384K MAC address entries IEEE 802.1d standards compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
| VLAN | 4K VLANs Guest VLANs and voice VLANs GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping |
Related Products
| Huawei CloudEngine S6730-H Series 10GE Switches | |
| S6730-H24X6C | S6730-H48X6C |
| Huawei CloudEngine S6730-H-V2 Series 10GE Switches | |
| S6730-H24X6C-V2 | S6730-H28X6CZ-V2 |
| S6730-H48X6C-V2 | S6730-H28X6CZ-V2 |
| S6730-H48X6CZ-V2 | S6730-H28X6CZ-TV2 |
| S6730-H48X6CZ-V2 | S6730-H28X6CZ-TV2 |
| S6730-H48X6CZ-TV2 | S6730-H48X6C-TV2 |
| S6730-H48X6CZ-TV2 | S6730-H24X6C-TV2 |
| Huawei CloudEngine S6730-S Series Switches | |
| S6730-S24X6Q | |
