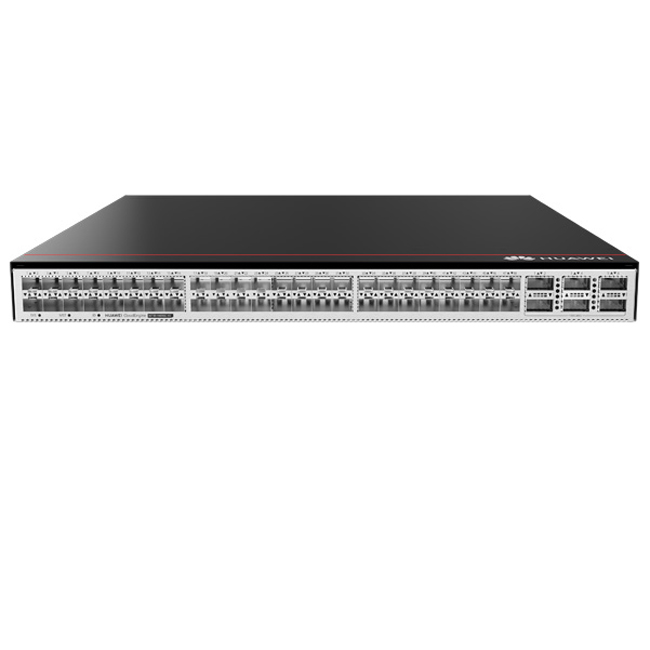

S6730-H48X6C-TV2, Huawei S6730-H Switch, 48x10GE SFP+, 6x40GE QSFP28, HTM, No Power Module
Model No.: S6730-H48X6C-TV2
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * S6730-H48X6C-TV2: Huawei CloudEngine S6730-H48X6C-TV2 (48*10GE SFP+ ports, 6*40GE QSFP28 ports, optional license for upgrade to 6*100GE QSFP28,HTM,without power module)
Huawei CloudEngine S6730-H-V2 series switches are next-generation enterprise-class core and aggregation switches that offer high performance, high reliability, cloud management, and intelligent operations and maintenance (O&M). They are purposebuilt with security, IoT, and cloud in mind. With these traits, CloudEngine S6730-H-V2 can be widely used in enterprise campuses, colleges/universities and other scenarios.
CloudEngine S6730-H-V2 switches offer 10GE, 40GE, and 100GE port types, flexibly adapting to diversified network bandwidth requirements. They also support cloud management and implement cloud-managed network services throughout the full lifecycle from planning, deployment, monitoring, experience visibility, and fault rectification, all the way to network optimization, greatly simplifying network management.
Specification
| Huawei S6730-H48X6C-TV2 Specification | |
| Model | S6730-H48X6C-TV2 |
| Fixed ports | 48 x 1/10 Gig SFP+, 6 x 40/100 Gig QSFP28, HTM |
| Dimensions (W x D x H) | 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) |
| Chassis height(U) | 1U |
| Chassis weight (including packaging) | 9.2 Kg |
| Power supply type | • 600 W AC (pluggable) • 1000 W DC (pluggable） |
| Rated voltage range | • AC input (600 W AC ): 100 V AC to 240 V AC, 50/60 Hz • DC input (600 W AC ): 240 V DC • DC input (1000 W DC): -48 VDC to -60 V DC |
| Maximum voltage range | • AC input (600 W AC ): 90 V AC to 290 VAC, 45 Hz to 65 Hz • High-voltage DC input (600 W AC): 190 V DC to 290 V DC (meeting 240 V high voltage DC certification) • DC input (1000 W DC): -38.4 V DC to -72V DC |
| Maximum input current | • AC 600W：8A • DC 1000W：30A |
| Noise | • Under normal temperature (sound power): 65dB (A) • Under high temperature (sound power): 88dB (A) • Under normal temperature (sound pressure): 52dB (A) |
| Operating temperature | -5°C to +45°C (23°F to 113°F) |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Relative humidity | 5% to 95%, noncondensing |
| Power supply surge protection | • Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode • Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode |
| Fans | 4, Fan modules are pluggable |
| Heat dissipation | Heat dissipation with fan, intelligent fan speed adjustment |
