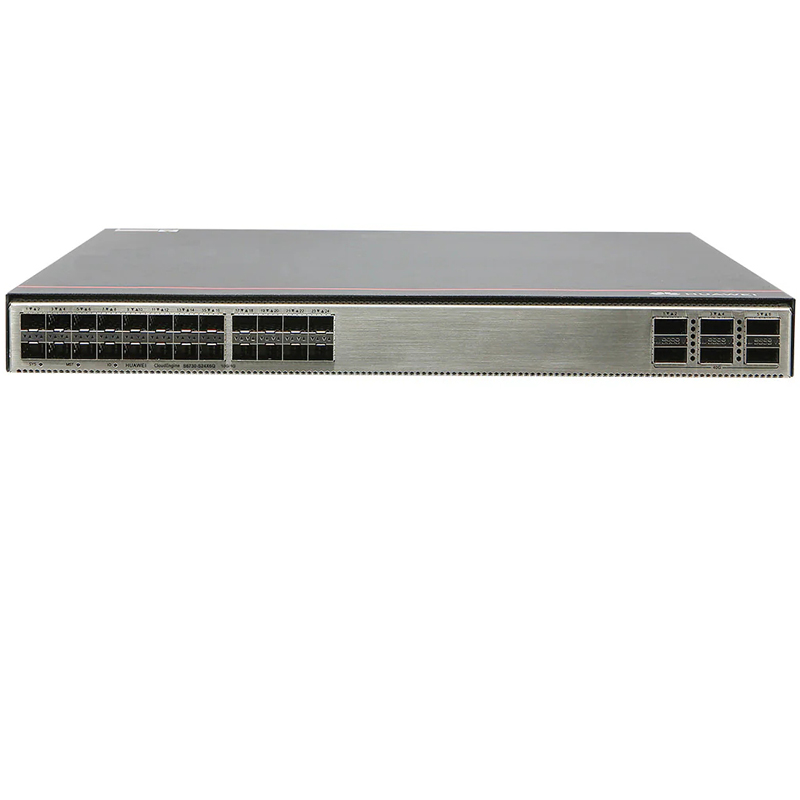

S6730-S24X6Q, Huawei S6730-S Switch, 24x10GE SFP+, 6x40/100GE QSFP, No PS
Model No.: S6730-S24X6Q
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * S6730-S24X6Q: Huawei CloudEngine S6730-S24X6Q (24*10GE SFP+ ports, 6*40/100GE QSFP ports, without power module)
CloudEngine S6730-S series full-featured 10 GE switches are Huawei's new generation fixed switches, to provide 10 GE downlink ports as well as 40/100 GE uplink ports.
CloudEngine S6730-S can be used to provide high-speed access for 10 Gbit/s access to high-density servers or function as a core/aggregation switch on a campus network to provide 40 Gbit/s rate. In addition, CloudEngine S6730-S provides a wide variety of services, comprehensive security policies, and various QoS features to help customers build scalable, manageable, reliable, and secure campus and Metropolitan Area Network.
Specification
| Huawei S6730-S24X6Q Specification | |
| Model | S6730-S24X6Q |
| Forwarding Performance | 480 Mpps |
| Switching Capacity | 960Gbps/2.4Tbps |
| Fixed ports | 24 x 10 Gig SFP+, 6 x 40 Gig QSFP+ |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Chassis height(U) | 1U |
| Input voltage (Power supply needs to be ordered seperately) |
AC Power • Rated AC voltage: 100V to 240V AC; 50/60 Hz • Max. AC voltage: 90V to 290V AC; 45–65 Hz DC Power • Rated DC voltage: –48V～–60V • Max. DC voltage: -38.4V DC～-72V DC |
| Input current | AC 600W：Max 8A DC 1000W：Max 30A |
| Maximum power consumption | 225W |
| Minimum power consumption | 88W |
| Operating temperature | • 0–1800 m altitude: -5℃to 45℃ • 1800–5000 m altitude: The operating temperature reduces by 1℃ every time the altitude increases by 220 m. |
| Storage temperature | -40-70℃ |
| Operating altitude | 5000 m |
| Noise (sound pressure at normal temperature) | 65dB(A) |
| Surge protection specification | AC power interface: differential mode: ±6kV: common mode: ±6kV DC power interface: differential mode: ±2kV: common mode: ±4kV |
| Power supply type | 600W AC Power 1000W DC Power |
| Relative humidity | 5% to 95% (non-condensing) |
| Fans | 4 , Fan modules are pluggable |
| Heat dissipation | Heat dissipation with fan, intelligent fan speed adjustment |
