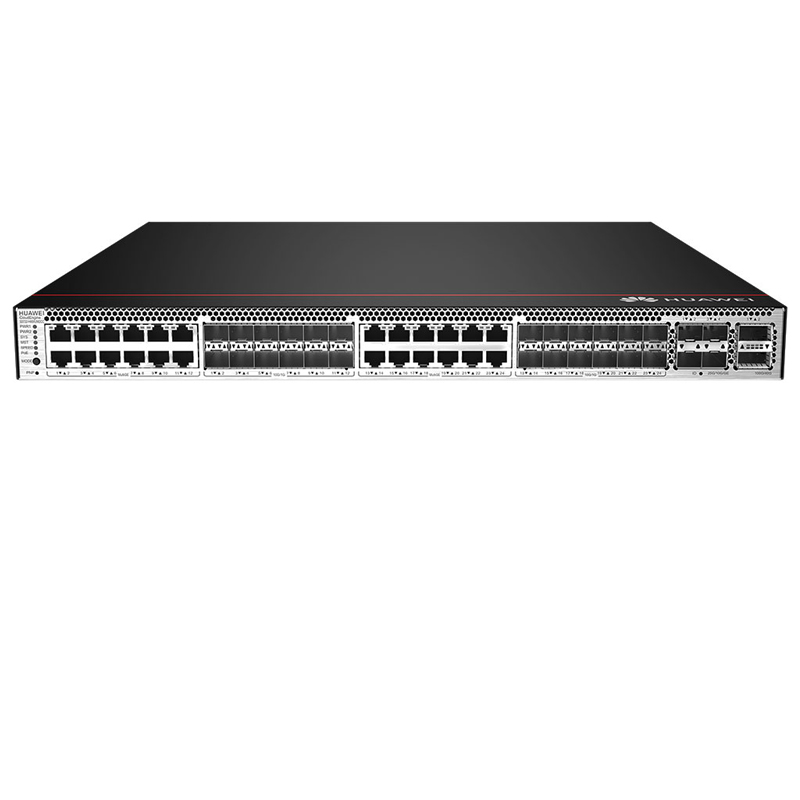

S5732-H48XUM2CC, Huawei CloudEngine S5732-H Switch, PoE++, No Power Module
Model No.: S5732-H48XUM2CC
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * S5732-H48XUM2CC: Huawei CloudEngine S5732-H48XUM2CC (24*100M/1G/2.5G/5G/10G Ethernet ports, 24*10GE SFP+ ports, 4*25GE SFP28 + 2*40GE ports or 2*100GE QSFP28 ports, 1*expansion slot, PoE++, without power module)
CloudEngine S5732-H hybrid optical-electrical switch is brand-new full-10GE switch developed by Huawei for the Wi-Fi 6 era.
The CloudEngine S5732-H builds on Huawei's unified Versatile Routing Platform (VRP) and boasts various IDN features. For example, the integrated wireless AC capabilities can manage up to 1,024 wireless APs; the free mobility feature ensures consistent user experience; the VXLAN functionality implements network virtualization; and built-in security probes support abnormal traffic detection, threat analysis even in encrypted traffic, and network-wide threat deception. The S5732-H series optical/electrical hybrid switche provides independent optical/electrical working mode and optical/electrical synergy workingmode. It can work as aggregation switch for medium- and large-sized campus networks, access switch in small- and micro-sized data centers, and supports long-distance access for Wi-Fi 6 AP.
Specification
| Huawei S5732-H48XUM2CC Specification | |
| Model | S5732-H48XUM2CC |
| Fixed port | 24 x 10GE SFP+, 24 × 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 1/10/25GE SFP28 + 2 x 40GE QSFP+ or 2 x 100GE QSFP28 ports |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 420 mm |
| Chassis height | 1U |
| Chassis weight (including packaging) | 8.2kg |
| Extended slot | One extended slot, support 8 x 25GE SFP28, 8 x 10GE SFP+** cards |
| Memory (RAM) | 4 GB |
| Flash memory | 2 GB |
| Power supply type | • 600 W PoE AC (pluggable) • 1000 W PoE AC (pluggable) • 1000 W PoE DC (pluggable) |
| Rated voltage range | • AC input (600 W/1000 W PoE AC ): 100 V AC to 130 V AC, 200 V AC to 240 V AC，50/60 Hz • High-Voltage DC input: 240 V DC • DC input (1000 W PoE DC): -48 VDC to -60 V DC |
| Maximum voltage range | • AC input(600 W/1000 W PoE AC ): 90 V AC to 290 V AC, 45 Hz to 65 Hz • High-Voltage DC input: 190 V DC to 290 V DC • DC input(1000 W PoE DC): -38.4 V DC to -72 V DC |
| Maximum power consumption | • 338 W (without PD) • 1980 W (with PD, PD power consumption of 1440 W) |
| Minimum power consumption | 140 W |
| Heat dissipation mode | Air-cooled heat dissipation and intelligent fan speed adjustment |
| Airflow | Air flows in from the front side and exhausts from the rear panel. |
| Long-term operating temperature | • 0-1800 m: -5°C to 45°C • 1800-5000 m: The operating temperature decreases 1°C every time the altitude increases 220 m. |
| Storage temperature | -40°C to +70°C |
| Relative humidity | 5%–95% (non-condensing) |
|
Surge protection specification (power port) |
• ±6 kV in differential mode • ±6 kV in common mod |
Related Products
| Huawei CloudEngine S5732-H Series Switches | |
| S5732-H48XUM2CC | CloudEngine S5732-H48XUM2CC (24*100M/1G/2.5G/5G/10G Ethernet ports, 24*10GE SFP+ ports, 4*25GE SFP28 + 2*40GE ports or 2*100GE QSFP28 ports, 1*expansion slot, PoE++, without power module) |
| S7X08000 | 8-Port 10GE SFP+ Interface Card |
| S7Y08000 | 8-Port 25GE/10GE/GE SFP28 Interface Card |
| PAC600S56-CB | 600 W AC Power Module |
| PAC1000S56-DB | 1000 W AC PoE Power Module |
| PAC1000S56-CB | 1000 W AC PoE Power Module |
| PDC1000S56-CB | 1000 W DC PoE Power Module |
| FAN-031A-B | Fan Module |
