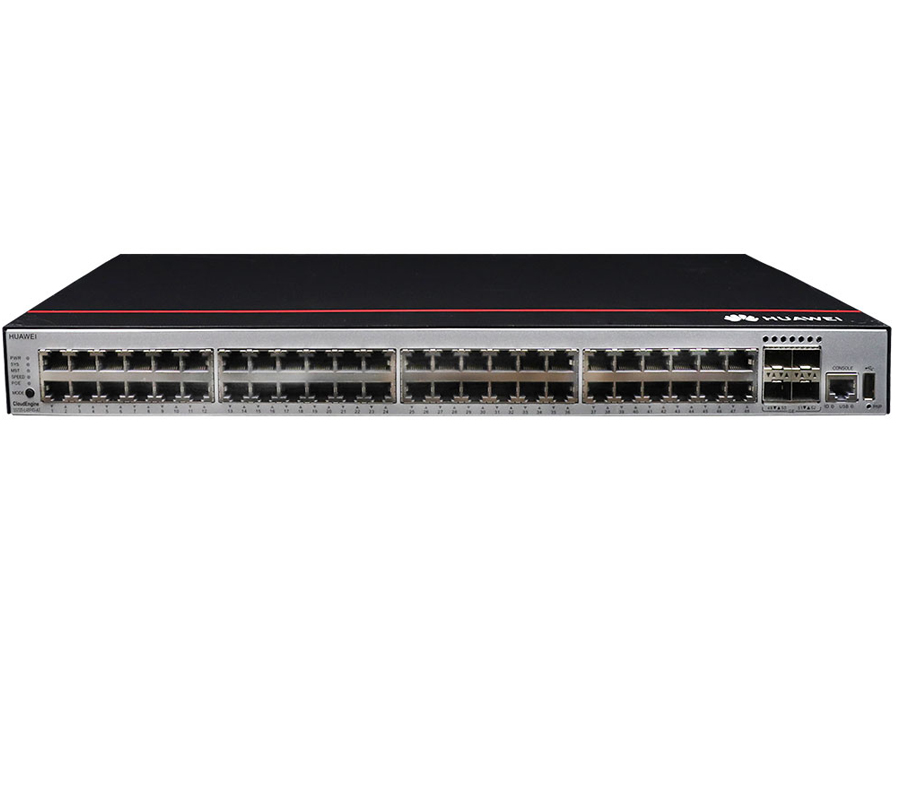

S5735-L48P4S-A1, Huawei S5735 Switch, 48xGE RJ45, 4xGE SFP, PoE+, AC Power
Model No.: S5735-L48P4S-A1
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * S5735-L48P4S-A1: Huawei CloudEngine S5735-L48P4S-A1 (48*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, AC power)
Specification
| Huawei S5735-L48P4S-A1 Specification | |
| Model | S5735-L48P4S-A1 |
| Fixed port | 48 x 10/100/1000BASE-T ports, 4 x GE SFP ports, PoE+ |
| Dimensions with packaging (H x W x D) | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Typical power consumption [W] | 58.7 W |
| Maximum power consumption [W] | Not providing the PoE function: 76.1 W 100% PoE loads: 456.1 W (PoE: 380 W) |
| Number of fans modules | 2 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [°C(°F)] | -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC |
| Maximum input current [A] | 6 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | ±6 kV in differential mode, ±6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Supported |
Related Products
| Huawei CloudEngine S5735-L Series Switches | |
| S5735-L8T4S-A1 | S5735-L24P4X-A1 |
| S5735-L8P4S-A1 | S5735-L32ST4X-A1 |
| S5735-L8T4X-A1 | S5735-L32ST4X-D1 |
| S5735-L8P4X-A1 | S5735-L48T4S-A1 |
| S5735-L24T4S-A1 | S5735-L48P4S-A1 |
| S5735-L24P4S-A1 | S5735-L48T4X-A1 |
| S5735-L24T4X-A1 | S5735-L48P4X-A1 |
| S5735-L24T4X-D1 | |
| S5735-L12T4S-A | S5735-L24T4X-D |
| S5735-L12P4S-A | S5735-L24P4X-A |
| S5735-L24T4S-A | S5735-L48T4S-A |
| S5735-L24P4S-A | S5735-L48T4X-A |
| S5735-L24T4X-A | S5735-L48P4X-A |
