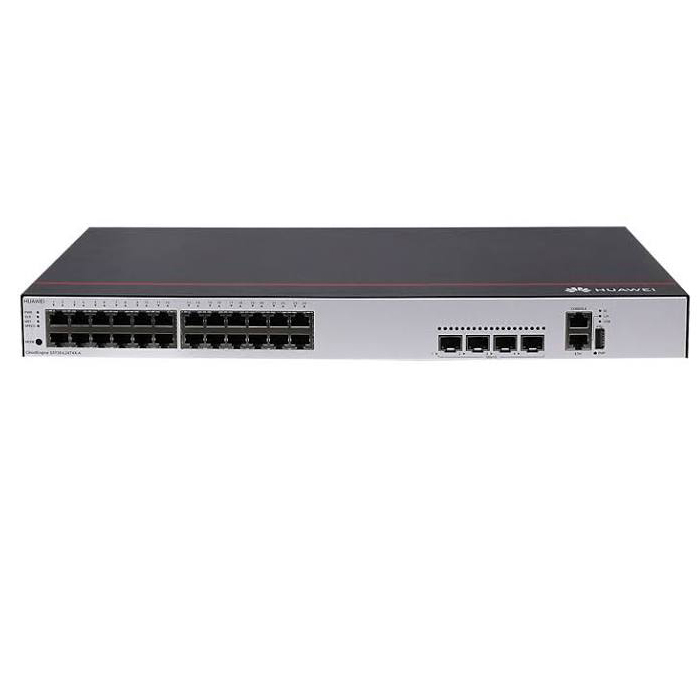

S5735-L24T4X-A, Huawei S5735-L Switch, 24xGE RJ45, 4x10GE SFP+, , AC Power
Model No.: S5735-L24T4X-A
Brand Name: CISCO
Condition: Original New
Warranty: 1 Year
MOQ: 1 Piece
Payment Terms: T/T
Shipping Terms: DHL,FedEx,UPS,Aramex,Air Cargo
Lead Time: 2-3 working days
Price: Negotiable
* 100% Original New * S5735-L24T4X-A: Huawei CloudEngine S5735-L24T4X-A (24 x 10/100/1000BASE-T ports, 4 x 10 GE SFP+ ports, AC power)
Specification
| Huawei S5735-L24T4X-A Specification | |
| Model | S5735-L24T4X-A |
| Fixed port | 24 x 10/100/1000Base-T ports, 4 x 10 GE SFP+ ports |
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 220 mm |
| Chassis height | 1 U |
| Chassis weight (including packaging) | 4 kg |
| Power supply type | Built-in AC power |
| Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum voltage range | • AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz • High-voltage DC input: 190 V DC to 290 V DC (meeting 240 V high-voltage DC certification) |
| Maximum power consumption | 43 W |
| Noise | 50.8dB (A) |
| Long-term operating temperature | • 0-1800 m altitude: -5°C to +50°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Short-term operating temperature | • 0-1800 m altitude: -5°C to +55°C • 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m. |
| Storage temperature | -40°C to +70°C |
| Relative humidity | 5% to 95% (non condensing) |
| Surge protection specification (service port) | ±7 kV in common mode |
| Surge protection specification (power port) | • Differential mode: ± 6 kV • Common mode: ±6 kV |
| Heat dissipation | Air-cooled heat dissipation and intelligent speed adjustment |
| Physical security | One Kensington lock slot, can be used to lock the device to mounting bracket |
Related Products
| Huawei CloudEngine S5735-L Series Switches | |
| S5735-L8T4S-A1 | S5735-L24P4X-A1 |
| S5735-L8P4S-A1 | S5735-L32ST4X-A1 |
| S5735-L8T4X-A1 | S5735-L32ST4X-D1 |
| S5735-L8P4X-A1 | S5735-L48T4S-A1 |
| S5735-L24T4S-A1 | S5735-L48P4S-A1 |
| S5735-L24P4S-A1 | S5735-L48T4X-A1 |
| S5735-L24T4X-A1 | S5735-L48P4X-A1 |
| S5735-L24T4X-D1 | |
| S5735-L12T4S-A | S5735-L24T4X-D |
| S5735-L12P4S-A | S5735-L24P4X-A |
| S5735-L24T4S-A | S5735-L48T4S-A |
| S5735-L24P4S-A | S5735-L48T4X-A |
| S5735-L24T4X-A | S5735-L48P4X-A |
